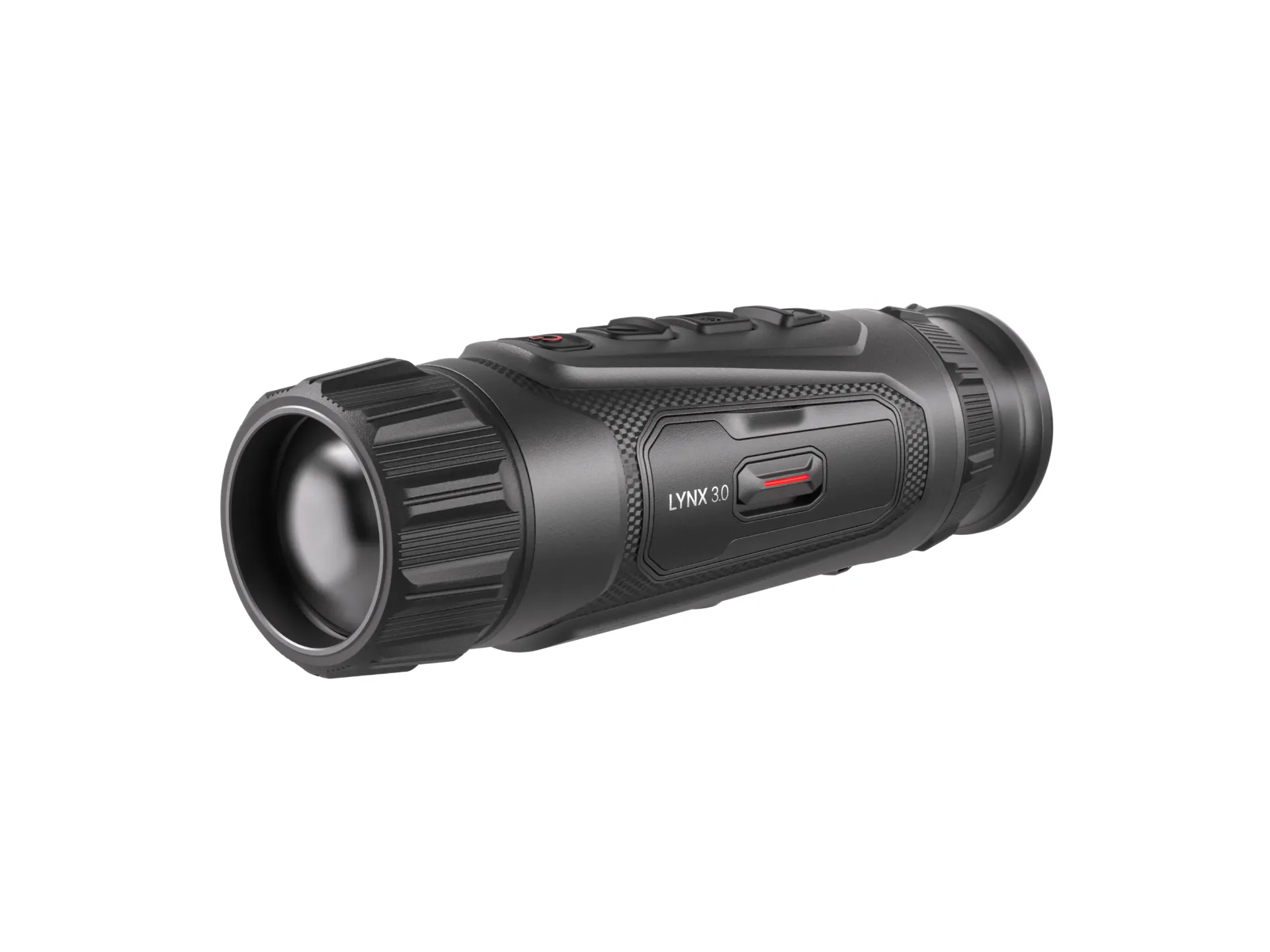

The HIKMICRO Lynx 3.0 LQ35 is a next-generation thermal monocular designed to provide exceptional image quality in a compact and lightweight format. With its high-sensitivity thermal sensor and advanced algorithms, it allows for clear observation in all conditions, day or night.
Its 640 × 512 pixel thermal sensor with a sensitivity of less than 15 mK allows for the detection of the slightest temperature differences. This precision enhances detection in challenging conditions such as fog, rain, or dense vegetation.
Equipped with a 35 mm F1.0 lens, the Lynx 3.0 LQ35 offers a detection range of up to 1800 meters. Its base magnification of 1.9x allows for comfortable observation with a wide field of view, ideal for medium and long-distance observations.
The monocular also integrates Image Pro 3.0, Zoom Pro technologies, and the HSIS shutterless system, which enhance image quality, smoothness, and detail accuracy.
Its Full HD AMOLED screen ensures excellent visual comfort, even during prolonged use. Compact and lightweight, it remains easy to transport and use in the field.
The Lynx 3.0 LQ35 also features modern functionalities such as photo and video recording with audio, 64 GB of internal memory, Wi-Fi connectivity, and compatibility with the HIKMICRO Sight app.
Its interchangeable 18650 battery offers extended battery life and allows for easy battery replacement in the field.
Technical specifications
Thermal module
- Sensor: Uncooled VOx
- Resolution: 640 × 512 pixels
- Pixel pitch: 12 μm
- Thermal sensitivity: < 15 mK
- Frequency: 50 Hz
- Lens: 35 mm F1.0
- Detection range: up to 1800 m
- Magnification: 1.9x to 15.2x
- Field of view: 12.5° × 7.5°
- Minimum focusing distance: 3.5 m
Display
- Screen: AMOLED
- Resolution: 1920 × 1080
- Diopter adjustment: -5D to +3D
- Brightness adjustment: Yes
- Contrast adjustment: Yes
Functions
- Image Pro 3.0
- Pro Zoom
- HSIS (shutterless system)
- Photo and video recording
- Audio recording
- Sleep mode
- PIP
- Hot Track
- Distance measurement
- Local album
- Wi-Fi 2.4 GHz / 5 GHz
- Internal memory: 64 GB
Power supply
- Battery type: 18650 rechargeable and replaceable
- Battery life: up to 5 hours
- Charging: USB-C
- External power supply: Yes
General
- Protection rating: IP67
- Operating temperature: -30°C to +45°C
- Dimensions: 169.6 × 53.6 × 49.5 mm
- Weight: 354.5 g with battery
