A thermal monocular designed for the field

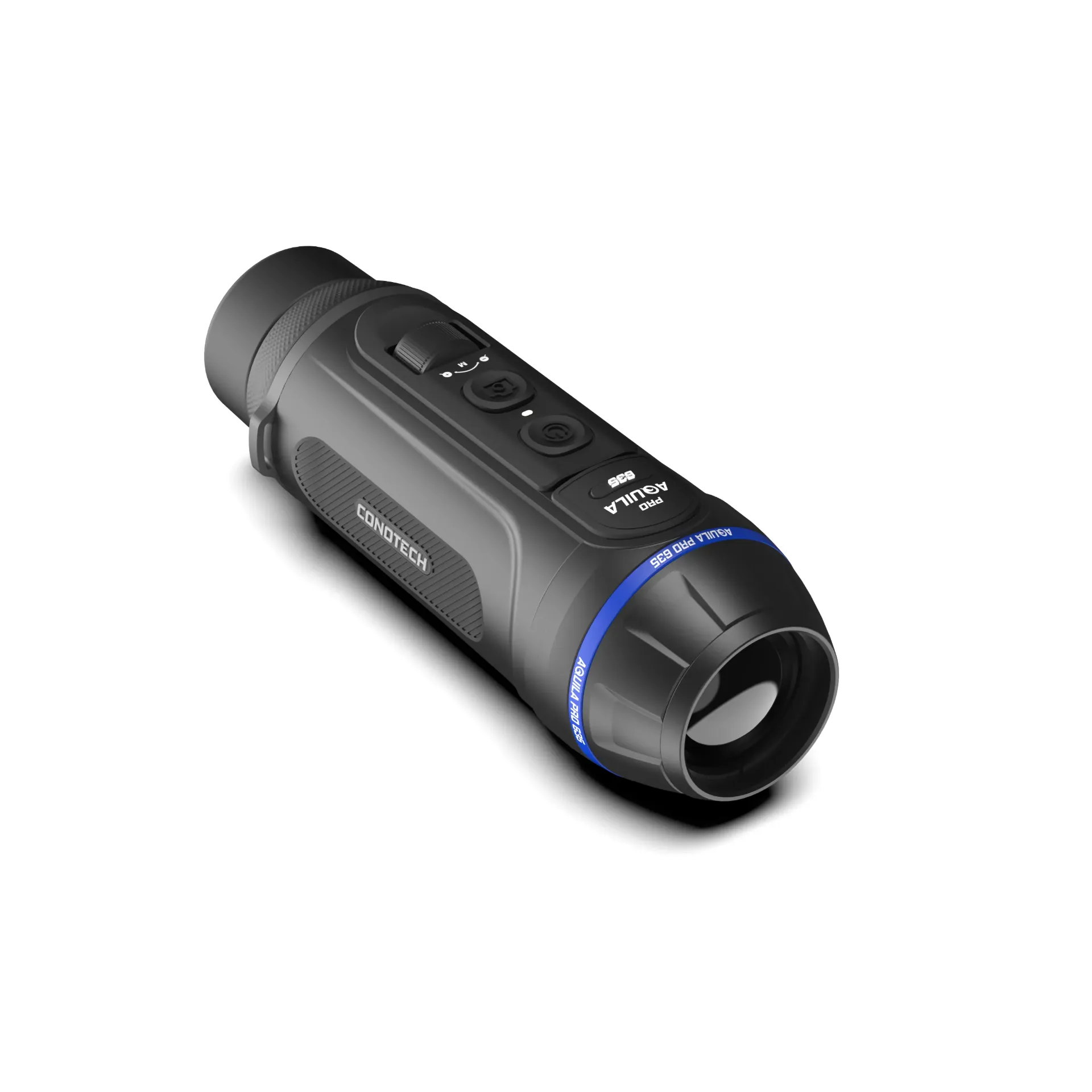

The CONOTECH Aquila Pro 635 is aimed at the hunter who is primarily looking for a precise, maneuverable, and reliable thermal observation tool.
Its uncooled VOx sensor of 640 × 512 pixels, combined with a pixel pitch of 12 µm and a NETD of less than 15 mK, is designed to accurately reproduce thermal differences. CONOTECH notably indicates that the sensor retains its recognition capabilities in low thermal contrast situations such as snow, dust, smoke, fog, or mist.
The lens of 35 mm gives the 635 model a field of view of 22 × 17.5 m at 100 m. The optical magnification of 1.9× can then be complemented by a zoom of up to 10×.
Designed for hunters
In the field, the interest of a thermal monocular is not simply to "see in the dark." It is mainly used to observe, search, monitor an area, and better understand what is happening around you, especially when light or vegetation makes traditional observation less effective.
The Aquila Pro 635 is particularly consistent for those who prioritize a versatile device, with a comfortable field of view and a compact enough format to remain easily accessible during an outing.
How to use the Aquila Pro 635?
1
Prepare your observation
Take a few seconds to adjust the sharpness and check that the image is comfortable before starting.
2
Scan the area
Start wide with the base magnification to scan an area before trying to zoom in on the image.
3
Zoom and focus
Once a signature is spotted, refine your observation. Use the focus wheel and zoom for more precision.
4
Manage your battery life
The battery can be replaced without interrupting operation thanks to the dual battery system.
How to use the Aquila Pro 635 ?
A detailed thermal image
The sensor 640 × 512 and the NETD lower than 15 mK provide a solid technical basis for distinguishing thermal differences in various observation conditions.
A field of view suitable for research
With its 35 mm lens, the 635 offers 22 × 17.5 m at 100 m. This is an interesting point when it is necessary to scan an area rather than remain focused solely on a specific point.
One-handed use
The focus by knob and the placement of the controls allow for a use designed to be performed with one hand, whether you are right-handed or left-handed.
Comfort adapted for glasses wearers
The eyepiece has an adjustment mechanism designed to facilitate use by glasses wearers.
A battery life suitable for long outings
CONOTECH announces a battery life of up to 12 hours at 22 °C. The ability to replace the external battery without turning off the device is also interesting for long observation periods.
A device designed for outdoor conditions
With an IP67 certification and an announced operating range of -20 °C to +50 °C, the Aquila Pro 635 is designed to be used in various field conditions.
Who is the Conotech Aquila Pro 635 monocular for?
I recommend it if:
- you are looking for a 640×512 thermal monocular versatile;
- you want to maintain a comfortable field of view with a 35 mm lens;
- you regularly observe in low light conditions;
- you prefer simple one-handed use;
- you want a relatively compact device weighing 540 g on the scale;
- you are looking for significant battery life for long outings.
It is less suitable if:
You are specifically looking for a integrated laser rangefinder. The 635 version does not have it. At CONOTECH, this function is offered on the Aquila Pro 650LIIR, with a stated measurement range of 5 to 1,200 m and an accuracy of ±1 m.
Technical specifications
- Sensor : uncooled VOx, 640 × 512, 12 µm, 50 Hz
- NETD : <15 mK
- Lens: 35 mm
- Magnification : 1.9×
- Zoom : 1.9× to 10×
- Field of view : 22 × 17.5 m at 100 m
- Screen: AMOLED 1024 × 768
- Palettes : 4
- Battery life : up to 12 h at 22 °C
- Weight : 540 g
- Dimensions : Ø61 × 179 mm
- Protection : IP67
- Connectivity : USB-C 5 V
- Video transmission : Wi-Fi
Valentin's opinion
I particularly recommend it to anyone looking for a versatile 35 mm, with a good image and enough battery life so you don't start looking at the battery more often than the wood.
I like its simplicity: you take it out, you look, you scan, you zoom when you need to… no need to fiddle with 15 settings before you start observing.
To remember
The CONOTECH Aquila Pro 635 focuses on a coherent balance between thermal image quality, field of view, and maneuverability. Its sensor 640×512 / 12 µm, its lens 35 mm, its OLED screen 1024×768, its weight of 540 g and its announced battery life of 12 hours at 22 °C make it a monocular designed to support prolonged observations in the field. It should simply be kept in mind that the 635 does not have a laser rangefinder: if this function is important to you, you should look at the Aquila Pro 650LIIR.
FAQ - Frequently Asked Questions
There is no single detection distance that is valid in all situations. It depends in particular on the size of the target, its thermal signature, the weather, the vegetation, and the contrast with the environment. CONOTECH does not provide a universal detection range for the 635 model.
A 35 mm lens generally offers a wider field of view than a 50 mm lens, which makes scanning an area easier. The 50 mm lens favors framing a distant target more. With its 35 mm lens, the Aquila Pro 635 therefore focuses on versatility and search.
NETD measures a thermal sensor's ability to detect small temperature differences. A NETD less than 15 mK indicates a high thermal sensitivity, particularly interesting when the thermal contrast between a target and its environment is low.
Yes. The CONOTECH Aquila Pro 635 benefits from a IP67 rating, making it suitable for use in demanding outdoor conditions. Its stated operating range is -20 °C to +50 °C.
Yes. The eyepiece has an adjustment that allows the observation to be adapted to the user, especially for glasses wearers. This is an interesting point for prolonged use.
Yes. The monocular has a Wi-Fi connection that allows for video transmission and supports firmware updates via the app provided by CONOTECH.
The 635 is interesting if you are primarily looking for a compromise between field of view, image quality, weight, and versatility. Its 35 mm lens and base magnification of 1.9× allow for starting observation with a relatively wide view before using the zoom when the situation requires.
